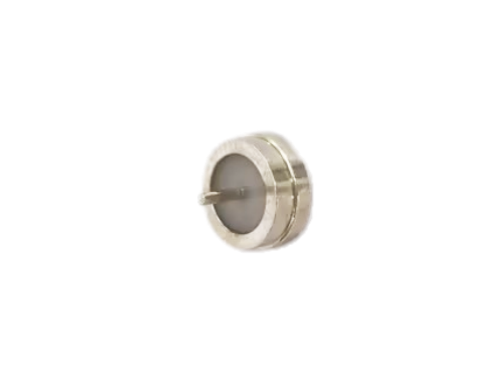

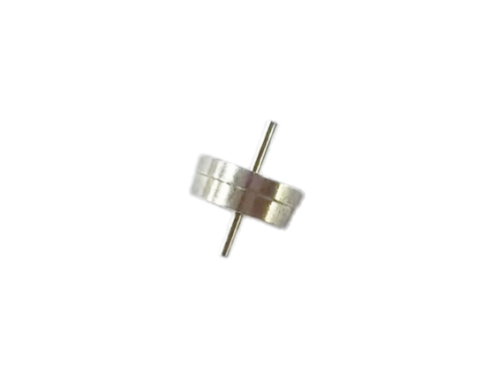

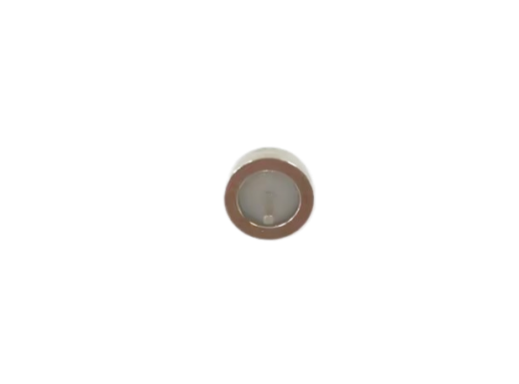

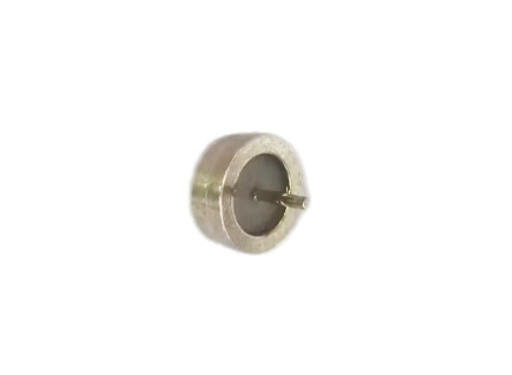

Singal Number Of Pins Glass Metal Seals Silvery Providing Superior Hermetic Sealing For Electrical And Sensor Components

Product Description:

Our Glass To Metal Seals are precision-engineered components designed to provide exceptional electrical insulation and mechanical strength in demanding environments. Featuring a single pin configuration, these seals are ideal for applications requiring reliable, singular electrical feedthroughs with superior durability. The termination style is a feedthrough, ensuring seamless integration into a variety of systems where maintaining the integrity of electrical connections through a hermetic seal is critical.

The color of the seal is a distinctive silvery hue, which not only enhances its aesthetic appeal but also indicates the high-quality metal materials used in its construction. This silvery finish contributes to excellent corrosion resistance, ensuring long-term performance even under harsh environmental conditions. The metal component is expertly bonded to the glass through advanced Metal-Glass Seals technology, which guarantees a strong, hermetic seal that prevents moisture ingress and maintains electrical insulation.

One of the standout features of this product is its robust impact resistance, rated at 20 Newtons. This level of impact resistance ensures that the seal can withstand mechanical shocks and vibrations, making it suitable for use in industrial, aerospace, and automotive applications where reliability is paramount. The ability to endure such mechanical stress without compromising the seal’s integrity is a testament to the superior craftsmanship and material selection employed in its manufacture.

The glass used in these seals is Corning 7052, a high-performance glass known for its excellent thermal and chemical stability. Corning 7052 glass is specifically chosen for its compatibility with metal components and its ability to form strong, reliable Glass-Metal Bond Seals. This type of glass-metal bonding is critical in creating hermetic seals that maintain their properties over extended periods and under varying temperature conditions. The use of Corning 7052 ensures that the seal maintains its structural and electrical properties even in extreme environments.

Metal Seal Connectors utilizing this Glass To Metal Seal design offer superior hermeticity and electrical insulation compared to conventional connectors. The combination of metal and glass materials creates a robust barrier that protects sensitive electronic components from contaminants such as dust, moisture, and chemical vapors. This makes them an excellent choice for applications in medical devices, telecommunications, instrumentation, and other fields where reliability and longevity are crucial.

The single pin configuration simplifies the assembly and integration process, making these seals highly versatile for customized electrical feedthrough solutions. Whether used in vacuum systems, high-pressure environments, or sensitive electronic assemblies, the feedthrough termination style ensures a secure and stable electrical path while maintaining the hermetic seal provided by the glass-metal interface.

In summary, our Glass To Metal Seals combine advanced Metal-Glass Seals technology with premium materials like Corning 7052 glass and carefully selected metals to deliver a product that excels in electrical insulation, mechanical strength, and environmental resistance. The silvery finish, single pin feedthrough design, and 20N impact resistance make these seals a reliable choice for a wide range of industrial and scientific applications. When you need dependable Metal Seal Connectors that offer long-lasting performance and uncompromising quality, our Glass To Metal Seals represent the pinnacle of engineering excellence and material science innovation.

Features:

• Product Name: Glass To Metal Seals
• High Impact Resistance: 20N
• Uses Coring 7052 Glass for superior durability
• Leak Rate: Less Than 1x10 ^-9 Cc/sec He ensuring excellent sealing performance
• Pin Material: Durable 4J29 Alloy
• Number of Pins: Single
• Ideal for applications requiring reliable Glass Seal Connectors
• Advanced Metal-to-Glass Bond Seals technology for enhanced strength
• Precision-engineered Metal-Glass Seals for optimal performance

Technical Parameters:

Applications:

The SSCore Glass To Metal Seals, model number 41-X0976, are precision-engineered components designed for demanding industrial applications requiring exceptional reliability and performance. These Metal-to-Glass Seals are widely used in various high-tech fields due to their outstanding high voltage resistance of ≥2500VAC and ultra-low leakage current of ≤0.5mA. Certified under the rigorous IATF16949 standard, these seals guarantee superior quality and consistency, making them ideal for critical environments where safety and durability are paramount.

These Metal-Glass Seals are essential in applications such as vacuum systems, electronic feedthroughs, and hermetic sealing solutions where maintaining an ultra-low leak rate, less than 1x10^-9 Cc/sec He, is crucial. The 4J29 alloy used for both the pin and body materials ensures excellent thermal and mechanical stability, making these Glass-to-Metal Bond Seals suitable for environments with extreme temperature variations and high mechanical stress.

Typical application occasions for SSCore’s Glass To Metal Seals include high-voltage electrical components, sensor assemblies, medical devices, aerospace instrumentation, and semiconductor manufacturing equipment. These seals provide reliable electrical insulation and gas-tight sealing, which are critical in preventing contamination and ensuring long-term operational integrity. The feedthrough termination style facilitates easy integration into systems requiring precise electrical connectivity through hermetic barriers.

In scenarios demanding high-volume supply with consistent quality, SSCore offers a monthly supply ability of 50,000 pieces with a minimum order quantity of just 5 pcs. Each unit is carefully packaged in vacuum packaging to maintain product integrity during transportation. With a competitive price range of 10 - 40 ￥ per piece and flexible payment terms including L/C, D/A, T/T, and D/P, SSCore’s Glass-to-Metal Bond Seals provide an excellent balance of cost-efficiency and performance.

Whether it is for advanced research laboratories, industrial manufacturing lines, or specialized electronic assemblies, SSCore’s Glass To Metal Seals are designed to meet stringent requirements. Their exceptional sealing performance, combined with high voltage resistance and mechanical robustness, make these Metal-to-Glass Seals the preferred choice for engineers and designers seeking to enhance the reliability and safety of their products.

Customization:

SSCore offers premium Glass-Metal Seals with model number 41-X0976, certified under IATF16949 to ensure top quality and reliability. Our Glass-to-Metal Bond Seals are designed with high voltage resistance of ≥2500VAC and a leakage current ≤0.5mA, making them ideal for demanding electrical applications.

Each Glass Seal Connector features excellent impact resistance of 20N and a superior leak rate of less than 1x10^-9 Cc/sec He, guaranteeing durability and airtight performance. We provide these products in vacuum packaging to maintain integrity during transit.

Our minimum order quantity is 5 pieces, with pricing ranging from 10 to 40 ￥ per unit. We ensure prompt delivery within 7 to 14 working days, supported by flexible payment terms including L/C, D/A, T/T, and D/P. SSCore has a supply ability of 50,000 pieces per month to meet your production needs.

All our Glass-to-Metal Seal products comply with RoHS standards, reflecting our commitment to environmental safety. The termination style is feedthrough, tailored for seamless integration into your systems.

Choose SSCore for reliable, high-quality Glass-Metal Seals and Glass Seal Connectors that meet stringent industry standards and support your customized requirements.

Support and Services:

Our Glass To Metal Seals are designed to provide reliable hermetic sealing solutions for a wide range of applications, including electronics, aerospace, and medical devices. These seals ensure excellent electrical insulation, mechanical strength, and resistance to thermal cycling.

For technical support, we offer comprehensive assistance including product selection guidance, installation instructions, and troubleshooting tips to help you achieve optimal performance. Our engineering team is available to provide customized solutions tailored to your specific requirements.

We also provide detailed datasheets, material specifications, and testing certifications to support your quality assurance processes. Additionally, our services include prototype development, production scaling, and post-sale support to ensure seamless integration of our Glass To Metal Seals into your projects.

To maximize the longevity and effectiveness of the seals, we recommend following our handling and storage guidelines, which can be found in the product manual. Proper care during installation will help prevent damage and ensure a secure, leak-proof seal.

Should you require further assistance or specialized services, please consult our technical resources or reach out to our support team through the available communication channels.

Packing and Shipping:

Our Glass To Metal Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in protective cushioning material and placed in a sturdy, custom-designed box to prevent any damage from impact or vibration.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. We also offer various shipping methods to accommodate your needs, including express and standard shipping. All packages are clearly labeled with handling instructions to ensure proper care throughout the shipping process.

In addition, we perform quality checks before packaging to ensure that every Glass To Metal Seal meets our high standards. Should you have any special packaging or shipping requirements, please contact our customer service team for assistance.

FAQ:

Q1: What is the brand and model number of the Glass To Metal Seals?

A1: The Glass To Metal Seals are branded SSCore with the model number 41-X0976.

Q2: What certifications does this product have?

A2: The Glass To Metal Seals are certified with IATF16949, ensuring high quality and industry standards compliance.

Q3: What is the minimum order quantity and price range for this product?

A3: The minimum order quantity is 5 pieces, with prices ranging from 10 to 40 ￥ per piece.

Q4: How is the product packaged and what is the typical delivery time?

A4: The Glass To Metal Seals are packaged in a vacuum package to ensure protection, with a delivery time of 7 to 14 work days.

Q5: What payment terms are accepted and what is the monthly supply capacity?

A5: Accepted payment terms include L/C, D/A, T/T, and D/P. The supply ability is up to 50,000 pieces per month.
